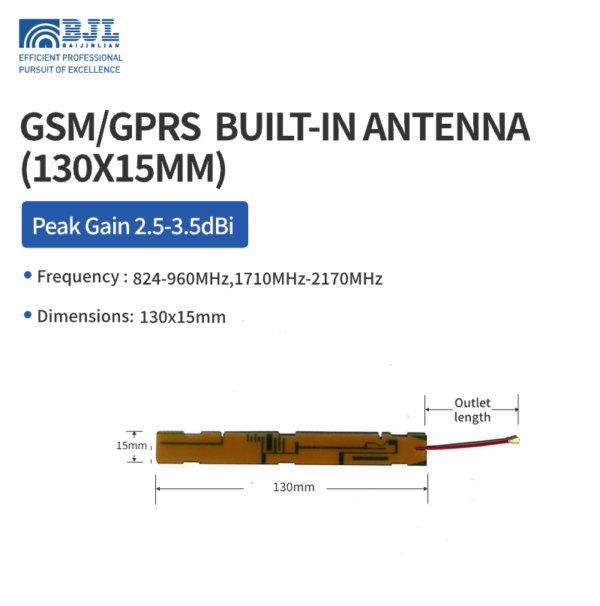

GPRS built -in antenna (130×15)
GPRS built -in antenna (130×15)
• Small in size, suitable for installation in confined spaces within equipment
• Resilient, shock-resistant, and drop-resistant; not prone to breaking
• Low cost, suitable for mass production
• Easy to install, suitable for surface mounting/soldering, and compatible with built-in modules for use
• Omnidirectional radiation, stable signal transmission and reception
• Model Number: BJL-P9003-13015-I120R
• Dimensions：130x15mm
• Frequency (MHz)：824-960MHz,1710MHz-2170MHz
• Peak Gain (dBi)：2.5-3.5dBi
• Impedance：50Ω
• Connector type：IPEX(Customizable)
• Operating temperature：-40°C to+85°C
Specifications
| Parameter | Value |
| Model Number | BJL-P9003-13015-I120R |
| Dimensions | 130x15mm |
| Frequency (MHz) | 824-960MHz,1710MHz-2170MHz |
| Bandwidth | 136/460MHz |
| Peak Gain (dBi) | 2.5-3.5dBi |
| VSWR | ≤2.0 |
| Radioactive | Omni-Direction |
| Polarization Type | Vertical |
| Input maximum power | 5W |
| Impedance | 50Ω |
| Connector | IPEX(Customizable) |
| Wire rod | RG113 |
| Standard Cable Length | 12cm(Customizable) |
| Product material | PCB |
| Operating temperature | -40°C to+85°C |
