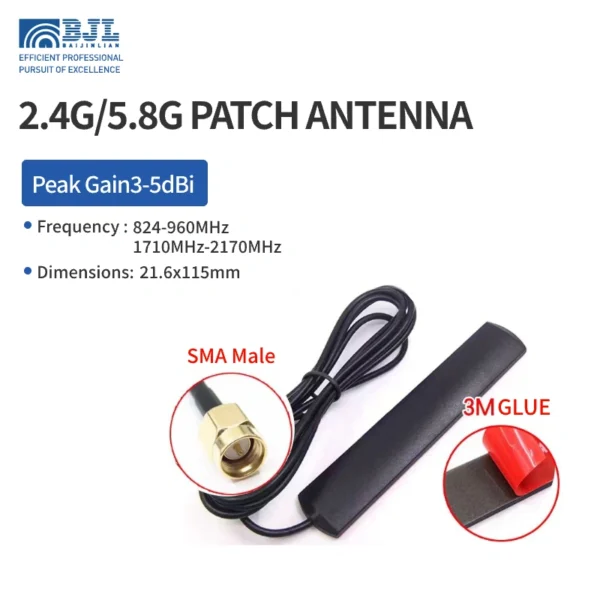

NB-IoT Patch antenna 21.6*115mm
NB-IoT Patch antenna 21.6*115mm

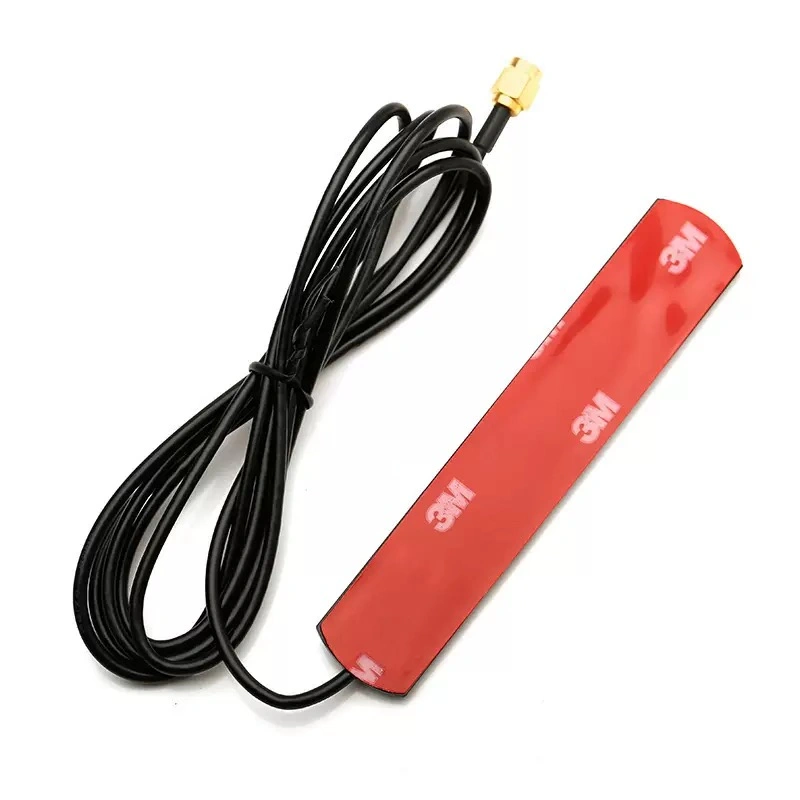

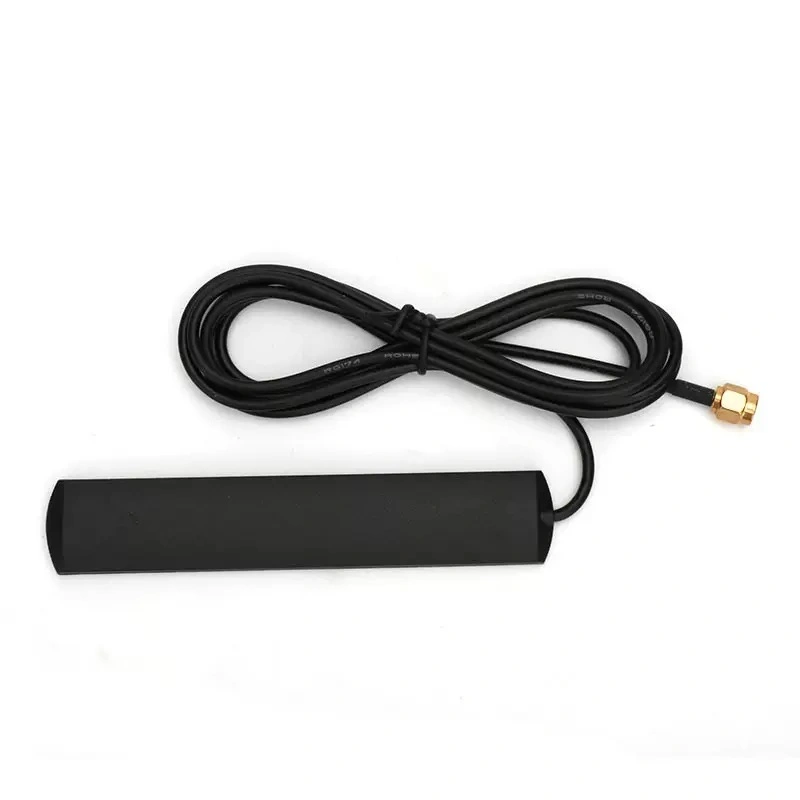

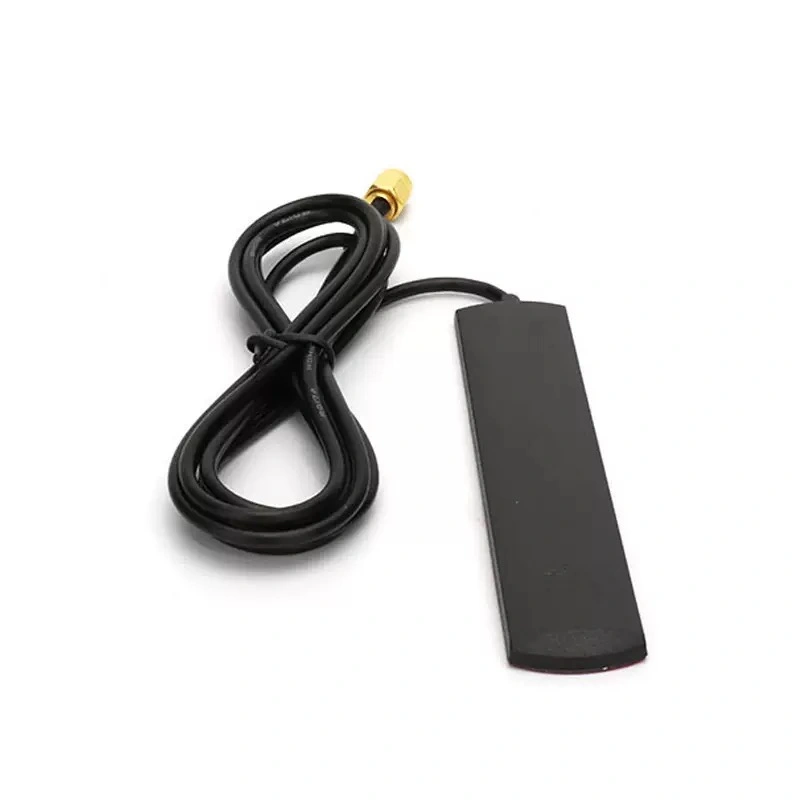

The flat external patch antenna, with adhesive backing or screw fixation, is easy to install. Its slim and lightweight design saves space, and it is waterproof for outdoor use. It is compatible with various IoT wireless terminals.
• Model Number: BJL-PW2405-SJ174-1000
• Dimensions：21.6*115mm
• Frequency (MHz)：2400-2500MHz/5150-5850MHz
• Peak Gain (dBi): 3- 5 dBi
• Impedance：50Ω
• Connector type：SMA Male(Customizable)
• Operating temperature：-40°C to+85°C
Specifications
| Item | Specification |
|---|---|
| Model Number | BJL-PW2405-SJ174-1000 |
| Dimensions | 21.6*115mm |
| Frequency (MHz) | 2400-2500MHz/5150-5850MHz |
| Bandwidth | 100/700MHz |
| Peak Gain (dBi) | 3-5dBi |
| VSWR | ≤2.0 |
| Radioactive | Omni-Direction |
| Polarization Type | Vertical |
| Input maximum power | 10W |
| Impedance | 50Ω |
| Connector | SMA Male(Customizable) |
| Wire rod | RG174 (Customizable) |
| Standard Cable Length | 1m (Customizable) |
| Product material | Fiberglass |
| Operating temperature | -40°C to+85°C |
