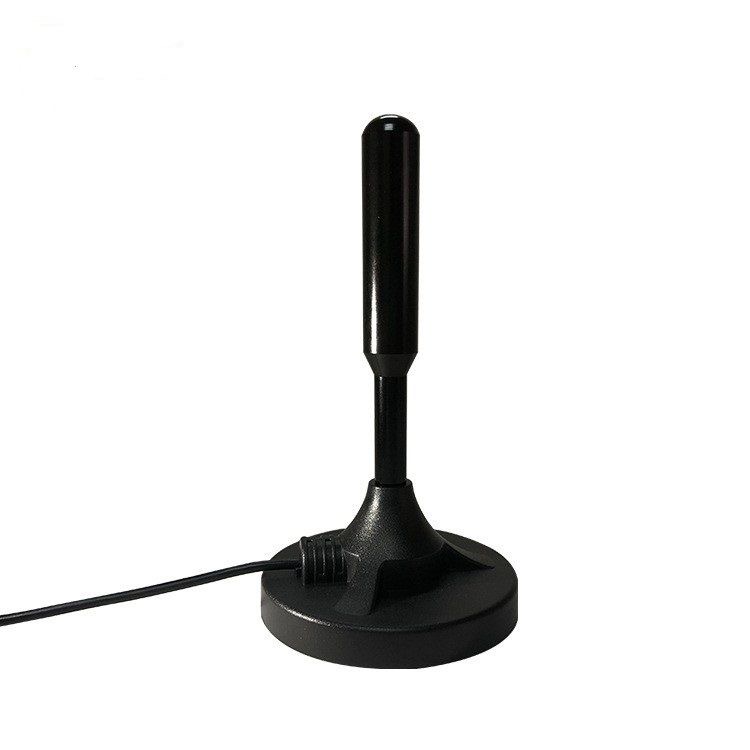

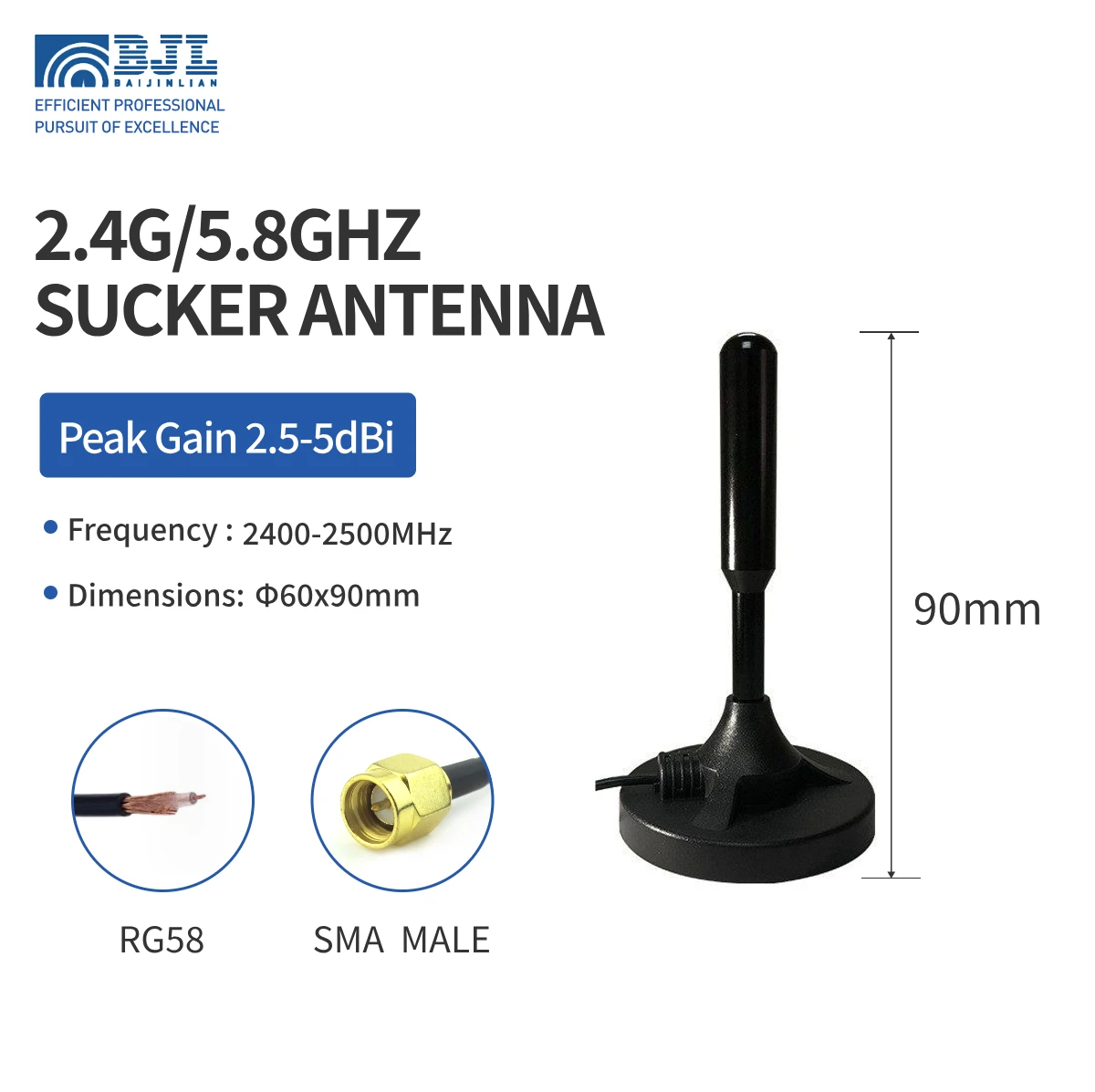

2.4G/5.8G Suction Cup Copper Rod Antenna φ60x90mm
2.4G/5.8G Suction Cup Copper Rod Antenna φ60x90mm
• Model Number：BJL-DX2405-90-1000/1500/2000/3000
• Dimensions：Ф60x90mm
• Frequency ：2400-2500MHz
• Peak Gain ：≤2.5-5dBi
• V.S.W.R：≤2.0
• Connector type：SMA Male（Customizable）
Specifications
| Model Number：BJL-DX2405-90-1000/1500/2000/3000 | ||
| Item | Specification | |
| Antenna performance | Frequency range | 2400-2500MHz |
| Bandwidth | 100MHz | |
| Gain | ≤2.5-5dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omnidirectional | |
| Polarization | Vertical | |
| Mechanical Specifications | Maximum input power | 50W |
| Antenna size | φ60X90mm | |
| Cable type | RG58（Customizable） | |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） | |
| Connector type | SMA Male（Customizable） | |
| Product material | Carbon steel、ABS | |

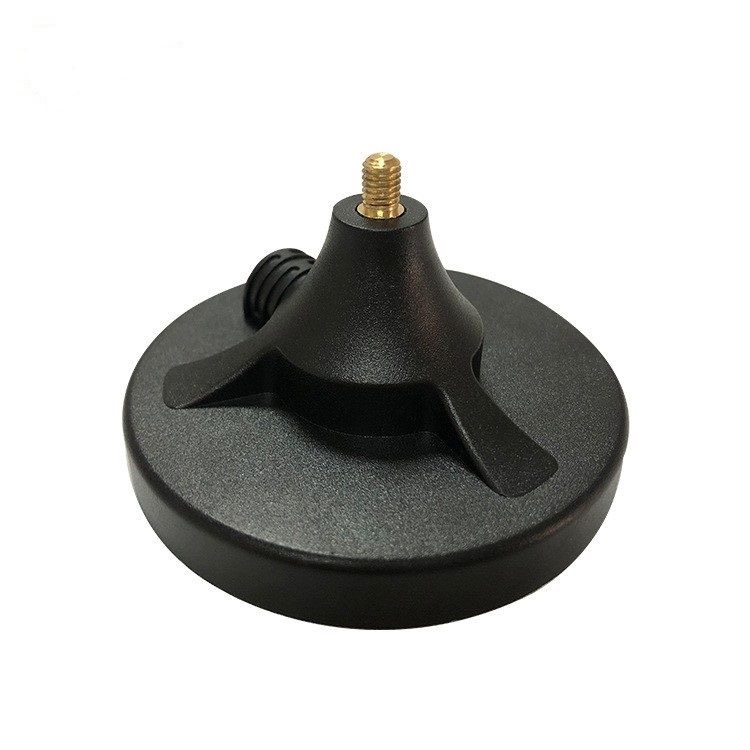

| Mounting method | Magnetic attachment | |
| Environmental performance | Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
