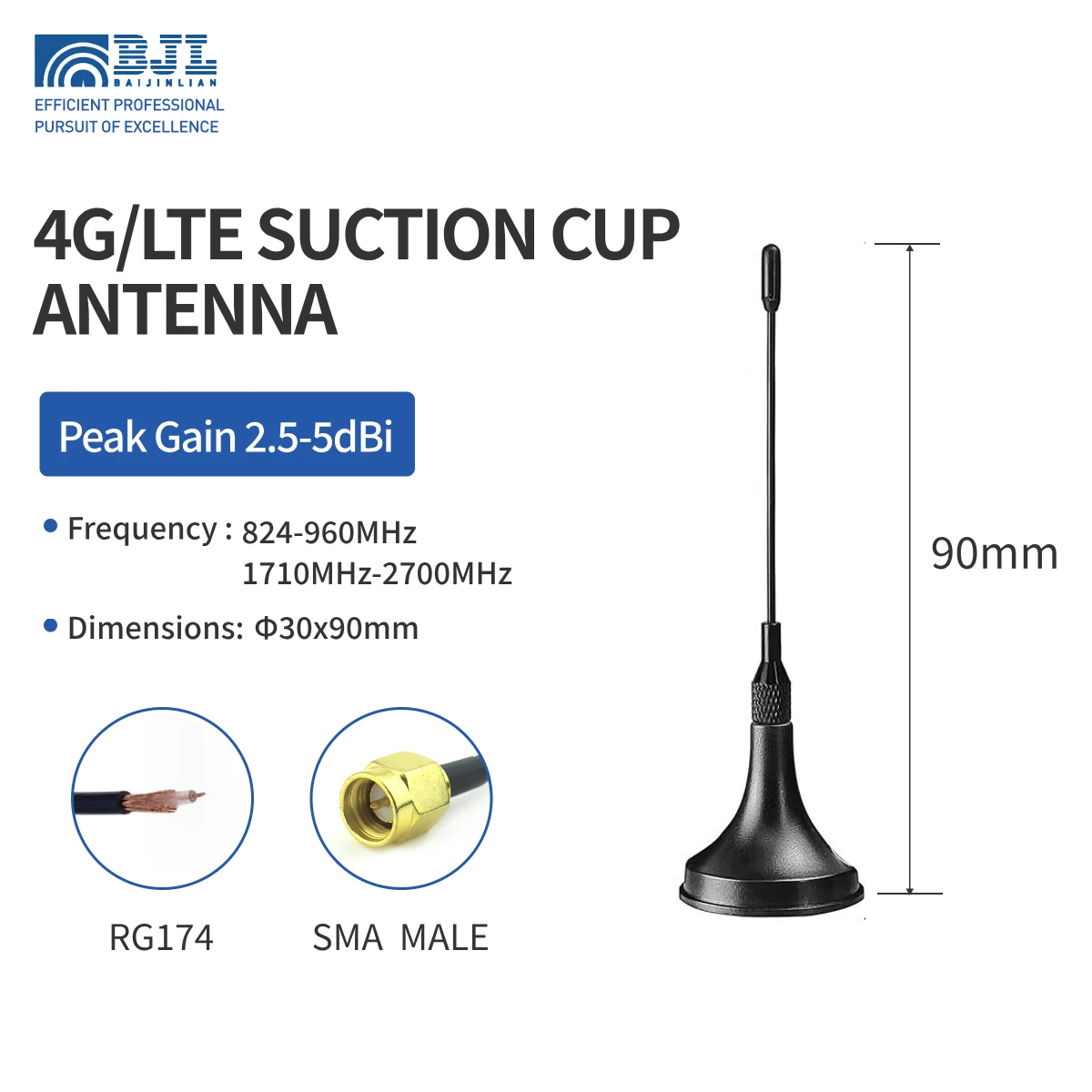

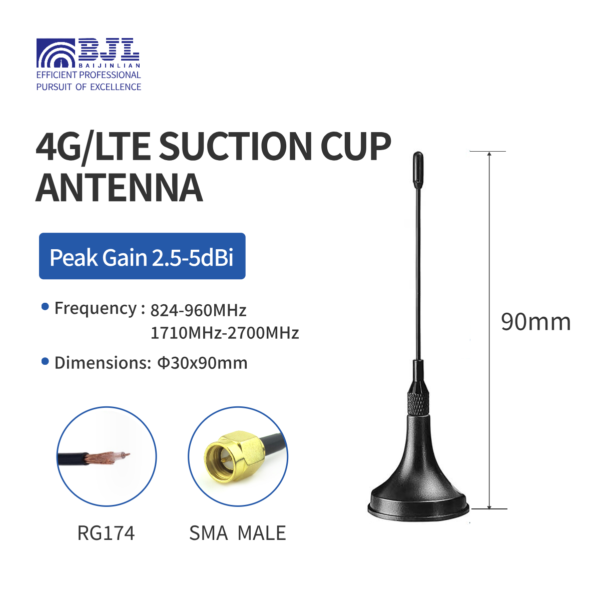

4G/LTE suction cup antenna
4G/LTE suction cup antenna
▲ Model Number: BJL-X4G02-Z090-1000/1500/2000/3000
▲ Dimensions：Ф30x90mm
▲ Frequency (MHz)：824-960/1710-2700MHz
▲Peak Gain (dBi): 2.5- 5 dBi
▲ Impedance：50Ω
▲ Connector type: SMA Male/IPEX一代（Customizable）
▲ Operating temperature：-40°C to +85°C
Specifications
| Model Number | BJL-X4G02-Z090-1000/1500/2000/3000 | |
|
Antenna performance |
Frequency range | 824-960/1710-2700MHz |
| Gain | ≤2.5-5dBi | |
| V.S.W.R | ≤ 2.0 | |
| Impedance | 50Ω | |
| Polarization | Vertical | |
| Input maximum power | 10W | |
|
Mechanical Specifications |
Antenna size | Ф30x90mm |

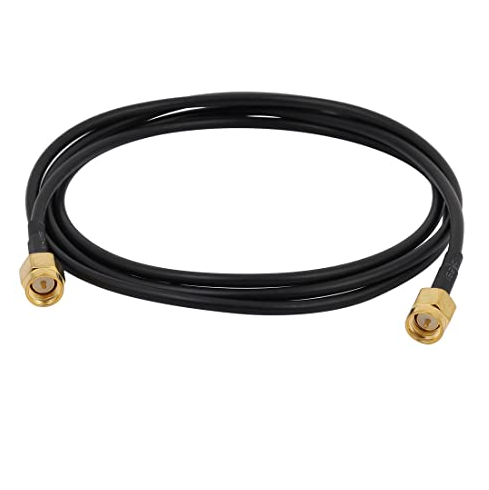

| Cable type | RG174/RG178（Customizable） | |

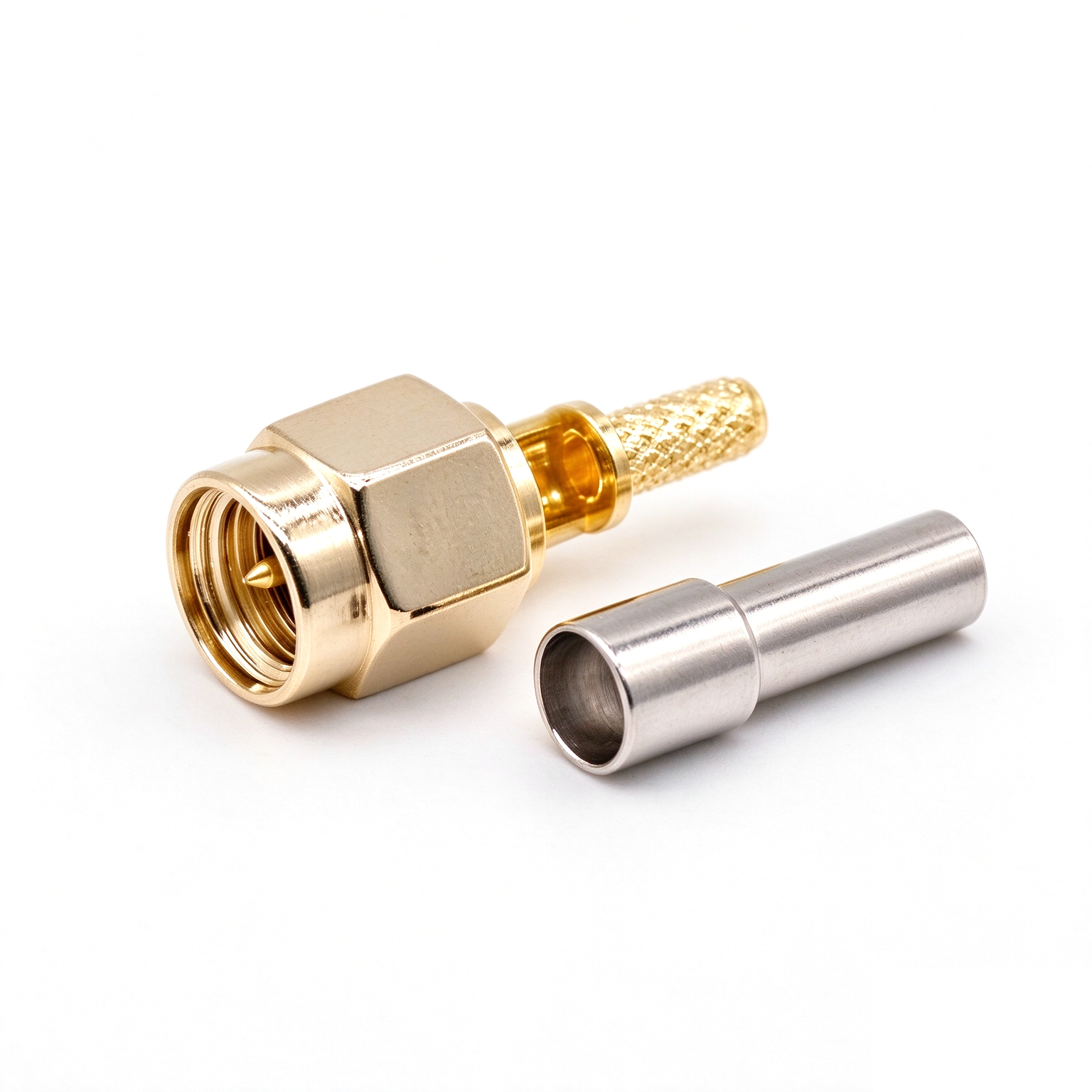

| Connector type | SMA Male/IPEX一代（Customizable） | |

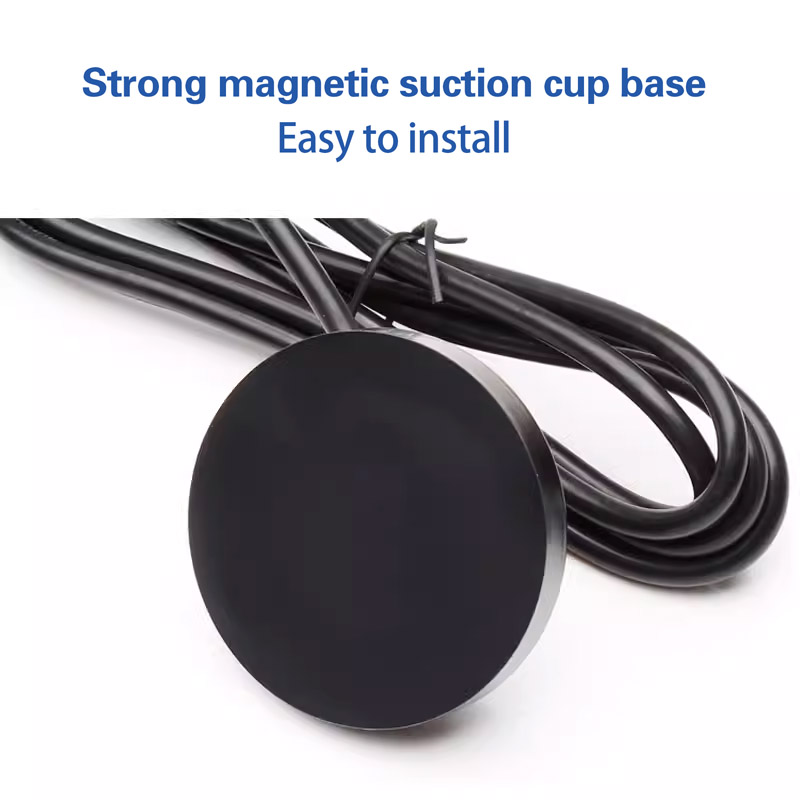

| Mounting method | Magnetic attachment | |
| Operating temperature | -40°C to + 85°C | |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant |
