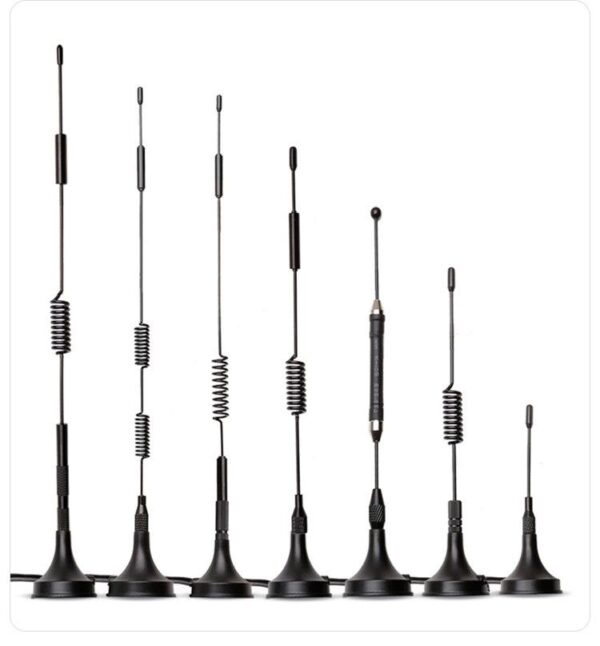

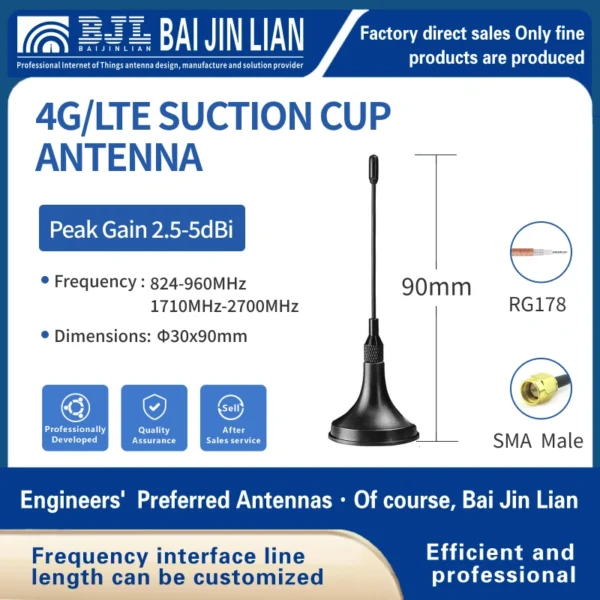

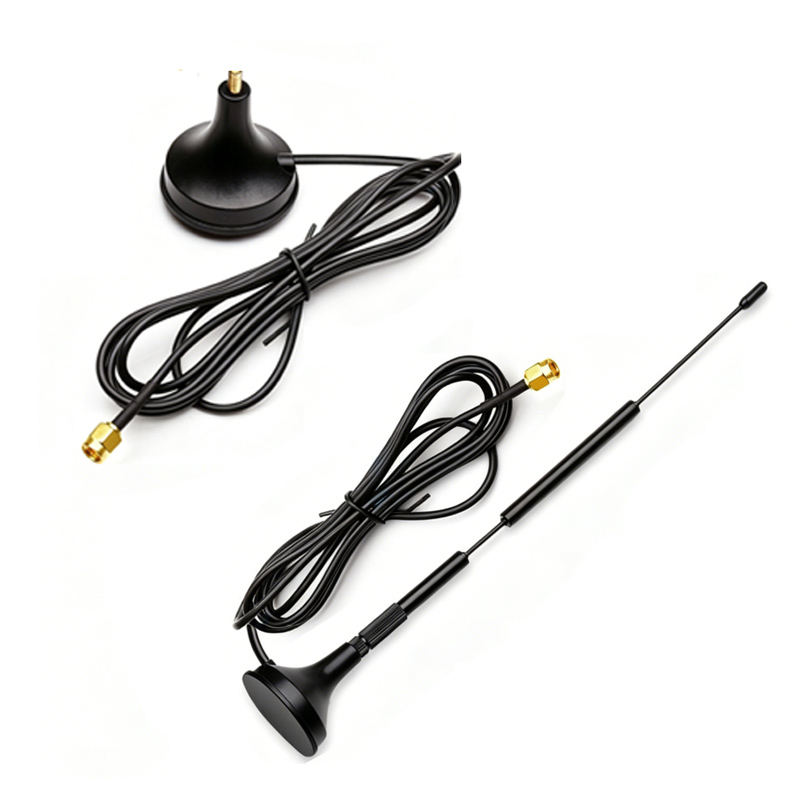

4G/LTE suction cup antenna
4G/LTE suction cup antenna
• Model Number: BJL-X4G02-Z090-1000/1500/2000/3000

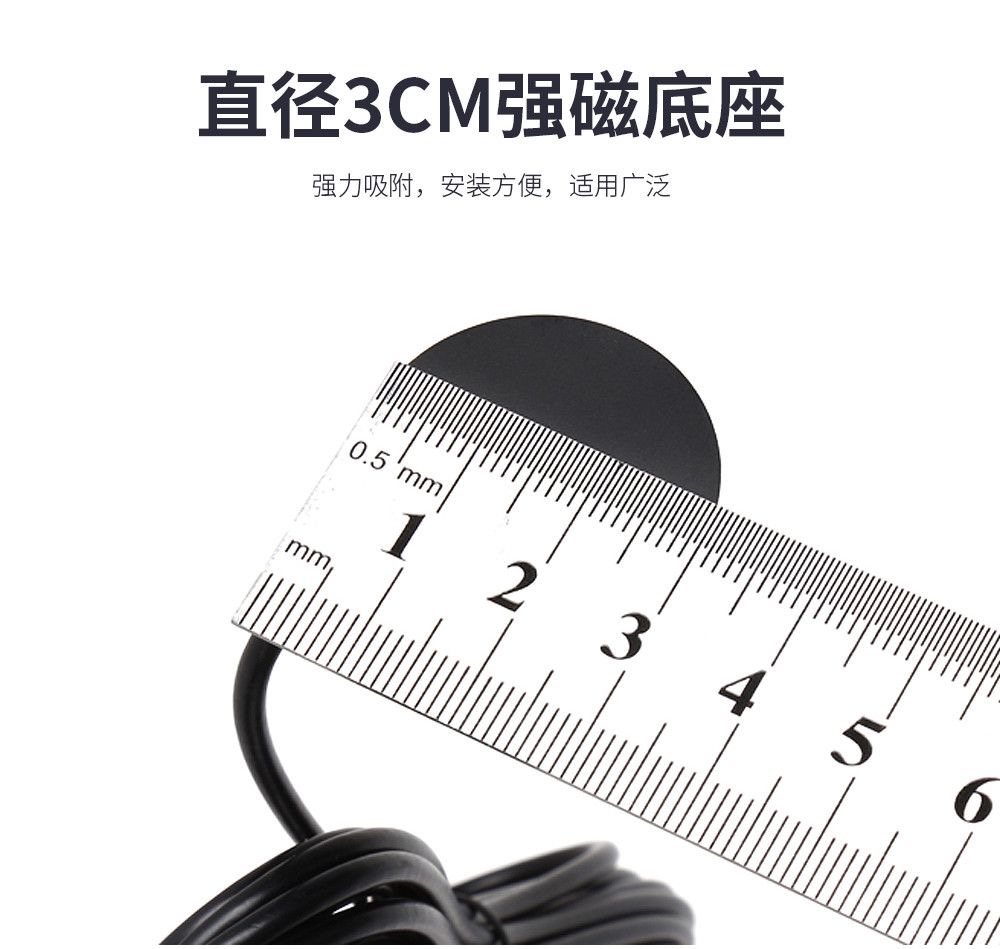

• Dimensions：Ф30x90mm
• Frequency (MHz)：824-960/1710-2700MHz
• Peak Gain (dBi): 2.5- 5 dBi
• Impedance：50Ω
• Connector type: SMA Male/IPEX一代（Customizable）
• Operating temperature：-40°C to +85°C
Specifications
| Parameter | Value |
| Model Number |
BJL-X4G02-Z090-1000/1500/2000/3000 |
| Dimensions |
Ф30x90mm |
| Frequency (MHz) |
824-960/1710-2700MHz |
| Bandwidth |
136/990MHz |
| Peak Gain (dBi) |
2.5-5dBi |
| VSWR |
≤ 2.0 |
| Radioactive |
Omni-Direction |
| Polarization Type |
Vertical |
| Input maximum power |
10W |
| Impedance |
50Ω |
| Connector |
SMA Male/IPEX一代（Customizable） |
| Wire rod |
RG174/RG178（Customizable） |
| Standard Cable Length |
1m/1.5m/2m/3m（Customizable） |
| Product material |
Carbon steel、ABS |
| Operating temperature |
-40°C to +85°C |
Product Details
