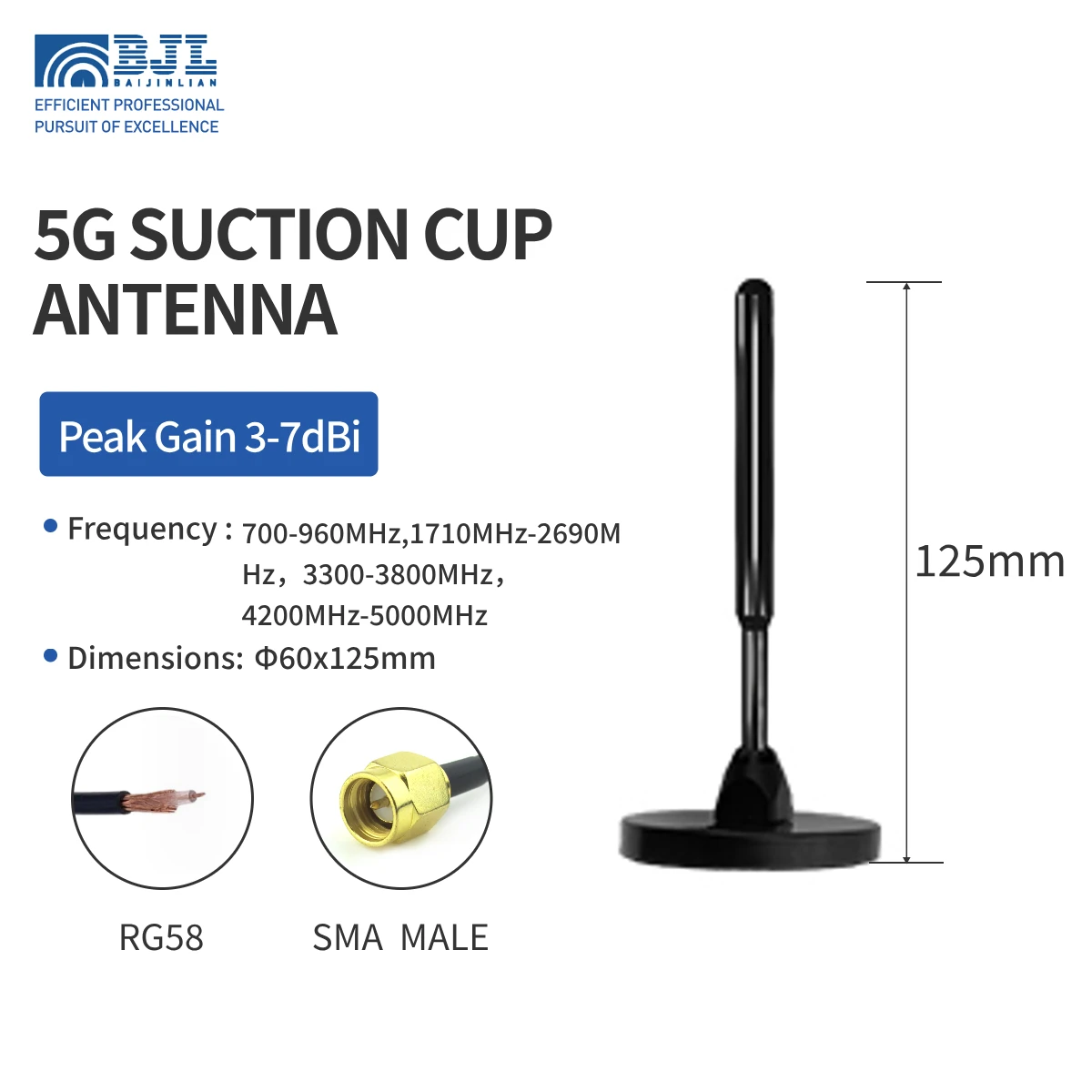

5G Large Suction Antenna（φ60x125mm）
5G Large Suction Antenna（φ60x125mm）
• Model Number：BJL-X5G05-SZ225-1000/1500/3000
• Dimensions：Ф630x225mm
• Frequency ：698-960MHz, 1710MHz-2690MHz
3300-3800MHz，4200MHz-5000MHz
• Peak Gain ：≤3-7 dBi
• Impedance：50Ω
• Connector type：SMA Male/IPEX 1st Generation（Customizable）
• Operating temperature：-40°C to +85°C
Specifications
| Model Number:BJL-DX5G07-125-1000/1500/3000 | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 698-960MHz,1710MHz-2690MHz 3300-3800MHz，4200MHz-5000MHz |
| Bandwidth | 262/990/500/800MHz | |
| Gain | ≤3-7dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omnidirectional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 50W |
| Antenna size | φ60X125mm | |
| Cable type | RG58（Customizable） | |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） | |
| Connector type | SMA Male/IPEX一代（Customizable） | |
| Product material | ABS | |
| Mounting method | Magnetic attachment | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
