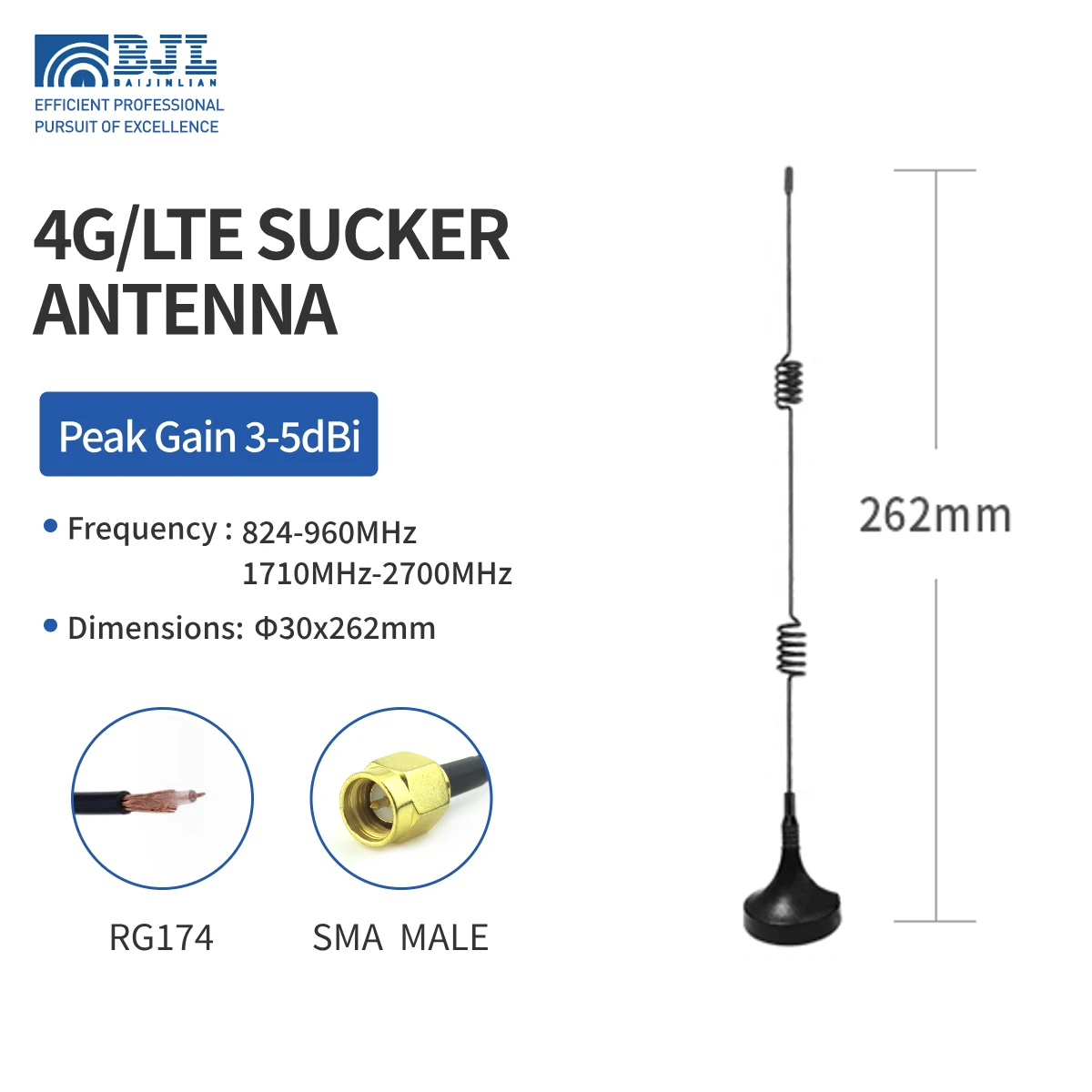

4G Suction Antenna（φ30x262mm）
4G Suction Antenna（φ30x262mm）
• Model Number：BJL-X4G05-S262-3000L
• Dimensions：Ф30x262mm
• Frequency ：698- 960 MHz,1710MHz-2700MHz
• Peak Gain ：≤3-7 dBi
• Impedance：50Ω
• Connector type：SMA Male(Customizable)
• Operating temperature：-40°C to +85°C
Specifications
| Model Number:BJL-X4G05-S262-3000L | ||
| Item | Specification | |
|
Antenna performance |
Frequency range | 698-960MHz/1710MHz-2700MHz |
| Bandwidth | 262/990MHz | |
| Gain | ≤3-7dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omnidirectional | |
| Polarization | Vertical | |
|
Mechanical Specifications |
Maximum input power | 10W |
| Antenna size | φ30X262mm | |
| Cable type | RG174（Customizable） | |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） | |
| Connector type | SMA Male/IPEX一代（Customizable） | |
| Product material | ABS | |
| Mounting method | Magnetic attachment | |
|
Environmental performance |
Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
