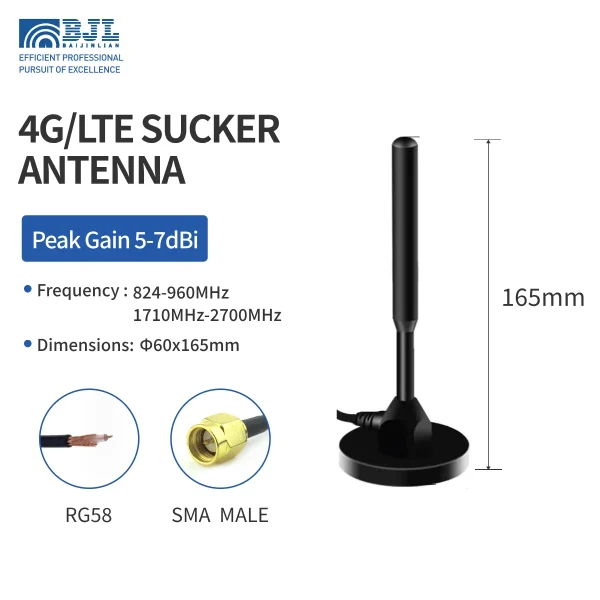

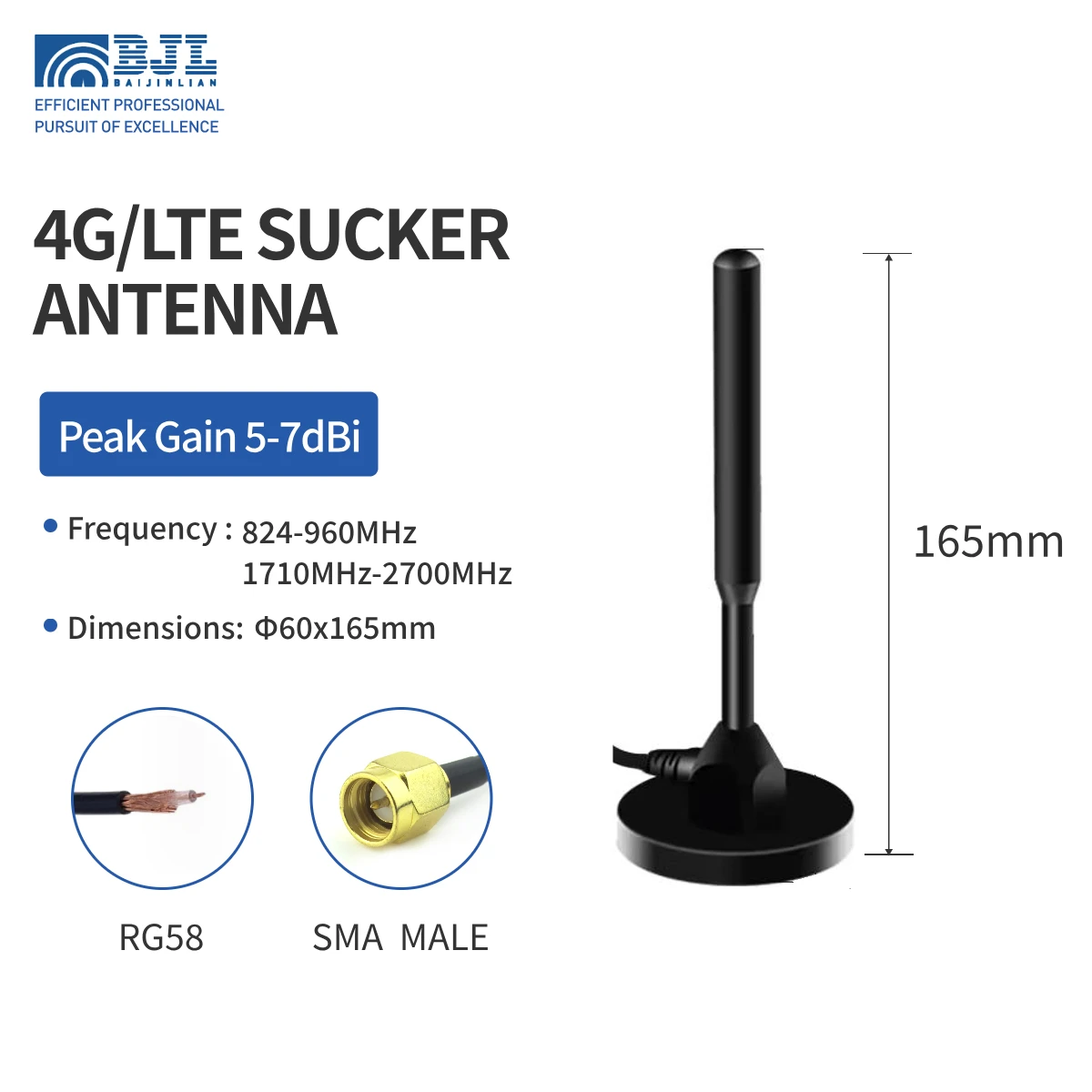

4G/LTE Large Suction Antenna （φ60x165mm）
4G/LTE Large Suction Antenna （φ60x165mm）
• Model Number：BJL-DX4G07-160-1000/1500/2000
• Dimensions：Ф60x165mm
• Frequency ：698-960/1710-2700MHz
• Peak Gain ：≤7dBi
• Impedance：50Ω
• Connector type：SMA Male（Customizable）
Specifications
| Model Number:BJL-DX4G07-160-1000/1500/2000 | ||
| Item | Specification | |
| Antenna performance | Frequency range | 698-960MHz/1710MHz-2700MHz |
| Bandwidth | 262/990MHz | |
| Gain | ≤7dBi | |
| V.S.W.R | ≤2.0 | |
| Impedance | 50Ω | |
| Radiation direction | Omnidirectional | |
| Polarization | Vertical | |
| Mechanical Specifications | Maximum input power | 50W |
| Antenna size | φ60x165mm | |
| Cable type | RG58（Customizable） | |
| Standard Cable Length | 1m/1.5m/2m/3m（Customizable） | |
| Connector type | SMA Male（Customizable） | |
| Product material | Manganese steel | |
| Mounting method | Magnetic attachment | |
| Environmental performance | Operating temperature | -40°C to + 85°C |
| Storage temperature | -40°C to + 85°C | |
| Environmentally friendly | RoHS compliant | |
